Concrete Expansion Joints: Why They Matter and When They Need Repair
Concrete expansion joints are one of those details most people walk over every day without giving them a second thought, until something goes wrong. These deliberately engineered gaps control how concrete moves, prevent random cracking, and protect the structural integrity of everything from a residential driveway to a warehouse floor. In Edmonton’s climate, where temperature swings of 30°C or more between seasons are routine, properly functioning expansion joints are not optional. They are what keep concrete surfaces intact year after year. This guide covers what expansion joints are, how they work, and exactly when they need attention.
Key Takeaways
- Expansion joints are structural components, not cosmetic details. They give concrete room to expand, contract, and settle without cracking. Without them, even well-poured concrete surfaces can begin deteriorating within a few years of installation.
- Joint failure has clear warning signs. Missing or crumbling sealant, weeds growing in the joint line, spalled slab edges, and water pooling along the joint are all signals that repair is overdue. Catching these signs early keeps the fix straightforward and affordable.
- Maintenance is cheaper than repair, and repair is cheaper than replacement. Inspecting and resealing joints on a regular schedule is the least expensive way to protect a concrete slab long term. Skipping maintenance leads to water infiltration, freeze-thaw damage, and eventually the kind of structural deterioration that requires concrete foundation repair or full slab work.
What Are Concrete Expansion Joints?
A concrete expansion joint is a deliberate, full-depth gap between sections of a concrete slab, or between a slab and another structure, designed to absorb movement caused by expansion, contraction, and settlement. Without them, the stress from thermal movement and soil shifting has nowhere to go, and forces cracks to form wherever the concrete is weakest.
The term “concrete joints” covers several distinct types: expansion joints, control joints, construction joints, and isolation joints. Each handles a different kind of movement, and understanding which is which matters when something fails, because the repair approach depends on the joint type.
Here is the basic physics. Concrete expands in hot weather and contracts in cold weather. In Edmonton’s climate, where summer highs can exceed 30°C and winter lows drop well below zero, a concrete slab experiences temperature swings of 30°C to 40°C or more each year. Using a standard coefficient of thermal expansion, a 65-foot slab experiencing a 30°C swing can change length by approximately 1/4 inch. That is enough movement to crack unjointed concrete. Expansion joints give the slab room to breathe by accommodating that movement without transferring stress into the surrounding concrete.
These joints are typically filled with compressible filler material such as closed-cell foam, fibreboard, or rubber strips, and topped with a flexible sealant to keep water and debris out. You have seen them in everyday life: the gap where a driveway meets a garage slab, the lines between sidewalk panels, the strips across warehouse floors, and the separations around columns or drain pits.
Types of Concrete Joints and How They Work Together
A durable concrete project usually uses more than one joint type. The goal is not to eliminate cracks entirely. It is to control where they form and how the slab moves, keeping concrete surfaces safe and predictable, whether you are looking at a residential driveway or a large industrial floor.
Contraction (Control) Joints
Contraction joints, often called control joints, are planned grooves or saw cuts that create a weak plane in the slab. When concrete shrinks during curing and the temperature drops, cracks form along these joints in a controlled manner rather than zigzagging across the surface. They are typically cut to about one-quarter to one-third of the slab thickness and spaced roughly two to three times the slab thickness in feet. For a 4-inch slab, that means joints every 8 to 12 feet.
One important clarification: many people loosely refer to every line in concrete as an expansion joint. Most joints on a typical sidewalk or patio are actually control joints designed for shrinkage, not for full expansion.
Expansion Joints
True expansion joints are full-depth separations that allow independent movement when concrete expands. They include compressible filler material and are critical in longer runs of concrete, large slabs, and wherever slabs meet foundations or walls. Long structures typically use expansion joints to separate the structure into manageable sections that can settle and move without transferring stress to adjacent elements.
Common examples include driveways meeting garage slabs, long city sidewalks, bridge decks, and wide warehouse door aprons.
Construction Joints
Construction joints are planned stopping and starting points used when a large pour cannot be completed in a single continuous operation. They often include reinforcing bars or dowels that cross the joint, allowing adjacent sections to transfer loads. In practice, construction joints may be detailed to function partly as control or expansion joints, depending on the project design.
Isolation Joints
Isolation joints completely separate a concrete slab from rigid structural elements such as columns, stair landings, machine bases, or signposts, so the slab can move freely without binding against fixed objects. Without them, the slab cracks where it meets those rigid bodies. Common placements include around the perimeter of a house slab, between a driveway and a garage foundation wall, and around floor drains in commercial kitchens.
Why Concrete Expansion Joints Are Critical to Slab Performance
Joints are structural components that maintain the integrity of concrete under real-world conditions, including temperature fluctuations, traffic, moisture cycles, and subgrade movement. Properly placed joints can extend the lifespan of concrete surfaces by decades. Without them, unchecked expansion causes large slabs to push against each other, leading to buckling, random cracking, and structural instability that may require concrete foundation repair or full slab replacement.
Omitting or misplacing joints leads to premature cracking at corners, along re-entrant angles like garage door openings, and near fixed features such as steps, walls, or columns. In commercial and industrial buildings, expansion joints also provide breathing space for structures to absorb wind sway and seismic forces.
Moisture, Load, and Subgrade Movement
Beyond temperature, moisture cycles and soil conditions under the slab create movement that joints must accommodate. Wetting and drying of subgrade soils, plus freeze-thaw cycles, transfer upward and lateral stresses to slab edges. Heavy traffic from vehicles, forklifts, or pallet jacks can pump water and fines through poorly sealed joints, undermining slab edges and accelerating edge deterioration. This is especially relevant at warehouse dock areas, loading zones, and residential driveways where heavy delivery trucks turn on slab edges.
Where Concrete Expansion Joints Are Needed
There is no single rule that applies to every concrete project, but well-established guidelines govern joint placement on slabs, pavements, and structural elements. Expansion joints are especially critical wherever a concrete slab meets a fixed object, where different-thickness sections of a slab meet, or where long runs of concrete face weather and traffic.

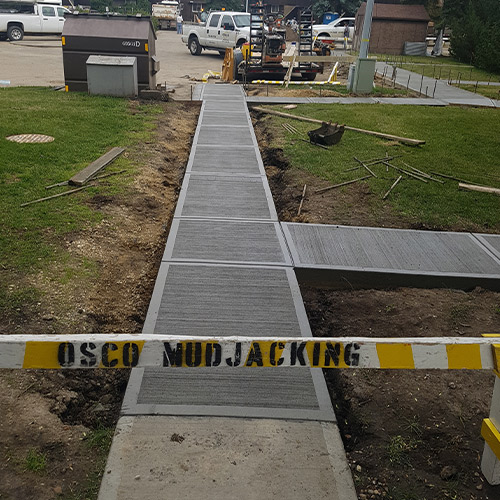

Driveways, Sidewalks, and Exterior Slabs
Expansion joints should be placed where a driveway meets a garage slab, at the interface with house foundations, and at fixed elements like steps or retaining walls. For residential slabs, aim for panels that are as square as possible and do not exceed about 10 to 13 feet in each direction. Large exterior patios and pool decks need both control joints for shrinkage and expansion joints for temperature changes. Joint sealing is particularly important at these locations to keep water from reaching the subgrade and contributing to settlement.
Industrial Floors and Warehouses
In warehouses, logistics centres, and manufacturing plants, joint layout and detailing are critical. Semi-rigid fillers are often used to support slab edges while still allowing the joint to function under forklift traffic. Poor joint layout in a large industrial floor can quickly lead to edge spalling, trip hazards, and costly operational disruption. If your warehouse floor is already showing signs of settlement and joint failure, polyurethane foam lifting and mudjacking are options worth considering before attempting joint repair on your own.
Roads, Bridges, and Large Concrete Structures
Concrete roads, bridge decks, and large structures rely on carefully engineered joints to manage longer spans and higher loads. In these applications, a structural engineer must specify joint spacing, materials, and details.
Concrete Expansion Joint Materials
The performance of a concrete expansion joint is only as good as the materials used to fill and seal it. Using the wrong joint material, such as rigid mortar, locks the joint and forces cracks into the slab instead. The basic system consists of a compressible filler within the joint and a flexible sealant at the surface to keep water and debris out.
Common filler materials include fibreboard, closed-cell foam, and rubber strips. Each compresses when slabs expand and rebounds when slabs contract. Older joints installed before 2000 may use materials that deteriorate faster and are now prime candidates for replacement.
Common sealant options include polyurethane, silicone, and semi-rigid epoxy fillers. Polyurethane works well for exterior pavements. Semi-rigid fills suit high-traffic industrial floors. A properly designed joint profile uses backer rods to control sealant depth, improving flexibility and extending service life.
When Do Concrete Expansion Joints Need Repair?
Even properly installed expansion joints wear out over time from UV exposure, freeze-thaw cycles, vehicle traffic, chemical exposure, and age. Recognizing early signs allows relatively simple repairs rather than full slab replacement.
Visual Warning Signs Along the Joint

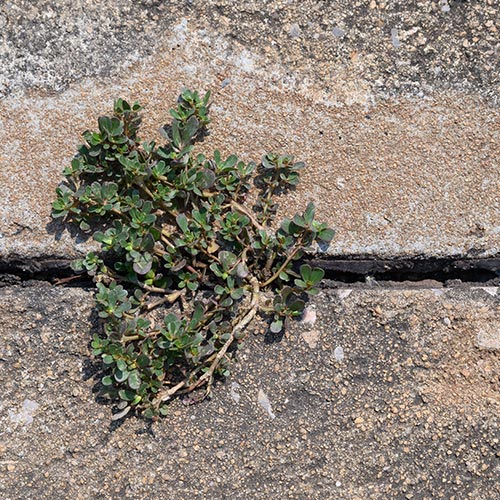

Missing or crumbling filler material, cracked or debonded joint sealant, debris packed tightly inside the joint, and vegetation growing from the joint line are all signs that repair is needed. Dark staining, standing water after rain, or efflorescence (white mineral deposits) are early indicators of water infiltration. Inspect joints at least twice yearly, in late spring and early autumn, and document changes with photos year over year.
Damage to Slab Edges and Adjacent Concrete
Chipped, spalled, or broken slab edges along a joint are serious. Faulting, where one side sits higher than the other, signals underlying support issues or poor drainage and requires more than a simple reseal. Cracks radiating from joint corners, especially at garage door openings or column bases, suggest the joint is not relieving stress as intended. When cracks exceed 1/8 to 3/16 of an inch in width, or you can feel vertical displacement by hand, professional evaluation is warranted.
Structural and Operational Red Flags
In industrial or commercial settings, repeated damage to forklift wheels, pallets catching on edges, or noticeable vibration when crossing joints all point to failing systems. If doors, roller shutters, or dock levelers no longer align correctly with floor slabs, horizontal movement at joints may be the cause. Any situation involving differential movement, water leakage, or safety hazards should prompt a call to a professional rather than a DIY patch.
How Concrete Expansion Joint Repair Works
Repair methods range from simple resealing to partial-depth reconstruction of the joint and surrounding concrete. A good repair starts with diagnosing why the joint failed, whether the cause is age, traffic, poor original detailing, moisture, or subgrade problems, so the fix addresses the root cause rather than just the visible symptom.
Inspection and Preparation
A professional starts by cleaning the joint thoroughly using compressed air, vacuum equipment, or controlled pressure washing to remove dust, debris, and loose material. Old sealant and filler are removed to sound material using saws, scraping tools, or grinders. Joint dimensions are measured, and slab edges are assessed. If concrete is delaminated, it is cut back to a proper depth and shape before repair materials are applied.
Repairing or Rebuilding the Joint
If slab edges are spalled, damaged concrete is cut out and rebuilt with repair mortar before re-establishing the joint gap. New backer rods or filler board are installed to the proper depth so the sealant can compress and expand as designed. On industrial floors, semi-rigid epoxies or polyureas fill joints nearly flush with the surface. For exterior slabs, flexible sealant is tooled into the joint. Proper joint sealing at this stage determines how long the repair will hold.
Post-Repair Checks and Curing
After repair, the joint is left undisturbed for the specified cure period. The contractor verifies the joint profile and adhesion once cured, checking for voids, bubbles, or debonded sections. In Edmonton’s climate, scheduling repairs in moderate weather, late spring or early autumn, yields the most reliable results.
Preventative Maintenance for Long-Lasting Concrete Joints
Maintaining expansion joints is not a set-and-forget proposition. Regular attention can significantly extend the useful life of both the joints and the concrete slab, at far less cost than major repair or replacement.
Inspect twice a year. Late spring and late autumn are the best windows to catch seasonal damage. Check after major storms or heat waves as well. Remove dirt, stones, and organic matter with a broom, blower, or vacuum.
Monitor sealant and filler condition. Watch for cracking, debonding, or colour change in sealants. Exposed gaps where filler has disappeared indicate that traffic or weather has exceeded original assumptions. Resealing early is a straightforward task compared with repairing structural damage after years of water intrusion.
Manage water and drainage around concrete surfaces. Even perfectly designed joints fail early if water constantly pools on or beside the slab. Ensure proper slopes on outdoor slabs, working gutters, and functioning drains to keep water moving away from expansion joints. In Edmonton’s winters, standing water in joints freezes and expands, prying apart slab edges and rapidly widening minor defects into major cracks.
When Joint Repair Is Not Enough
If underlying soils have settled significantly, reinforcement has corroded, or the slab has multiple major cracks, patching joints alone will not restore performance. Partial or full removal and replacement of the concrete slab, along with a redesigned joint layout, is often the safest long-term option. This decision should be based on a professional assessment. Even during full replacement, getting the placement of new expansion and control joints right is critical to avoiding the same structural problems. If settlement beneath the slab is contributing to joint failure, slab jacking or foam jacking to restore subgrade support may be required in addition to joint repair.
How Osco Mudjacking & Construction Ltd. Can Help
Expansion joint problems rarely exist in isolation. A failed sealant allows water to reach the subgrade. Water softens the soil. Soft soil causes settlement. Settlement creates steps between panels and puts more stress on joints that are already failing. Osco Mudjacking & Construction Ltd. has been solving this exact chain of problems for residential, commercial, and industrial clients across Central and Northern Alberta for decades. Whether your driveway needs joint sealing, your warehouse floor needs polyurethane foam lifting to address voids beneath settled slabs, or your concrete foundation needs an assessment after years of water infiltration through failed joints, our team diagnoses the full picture before recommending a repair. We do not patch symptoms. We fix the cause.
Summary
Concrete expansion joints are what allow a slab to move with the seasons without cracking. In Edmonton’s climate, where freeze-thaw cycles, clay soils, and dramatic temperature swings put constant pressure on concrete, a well-maintained joint system is one of the most cost-effective investments a property owner can make. Inspect joints twice a year, reseal them before they fail completely, manage drainage around the slab, and get a professional assessment when you see spalled edges, faulting, or water pooling along the joint line. Catching problems early keeps the repair straightforward. Ignoring them turns a joint replacement into a slab replacement.
Frequently Asked Questions
How long do concrete expansion joints last before they need replacement?
The joint gap itself is permanent. The materials inside it, the filler and sealant, are consumable components that wear out over time depending on UV exposure, traffic, de-icing salts, freeze-thaw cycles, and how well they were installed. Plan joint maintenance into your long-term budget rather than waiting for visible failure, which by that point usually means water has already reached the subgrade.
Can I repair concrete expansion joints myself, or do I need a professional?
Cleaning joints and applying a flexible sealant to shallow gaps in a residential driveway or patio can often be a DIY task. However, if slab edges are broken, the joint shows significant vertical movement, or the concrete is part of a foundation or an elevated deck, a professional assessment is strongly recommended. The most common DIY mistake is filling an expansion joint with rigid mortar, which locks the joint and causes severe cracking elsewhere in the slab.
Is it ever acceptable to permanently fill an expansion joint?
In most cases, no. Expansion joints are designed for natural movement, and filling them with rigid material typically causes uncontrolled cracking, slab buckling, or structural instability. In some controlled industrial settings, engineers may specify converting certain joints to semi-rigid fills for better traffic performance, but the joint still functions as a movement feature. For typical driveways, sidewalks, and garage slabs, permanently bonding adjacent panels without engineering review is almost never advisable.
Does Edmonton’s climate affect how expansion joints should be designed and maintained?
Significantly. Edmonton’s frequent freeze-thaw cycles, expansive clay soils, and large seasonal temperature swings mean joints here work harder than in milder climates. Water infiltrating a joint in autumn can freeze, expand, and pry slab edges apart over a single winter. Joint spacing, filler material selection, and resealing schedules all need to account for local conditions rather than generic guidelines written for more temperate regions.
What is the difference between a crack that needs sealing and a joint that needs repair?
A true joint is a deliberate, usually straight gap created during pouring or cutting. A crack is an unintended break. Narrow, stable hairline cracks away from joints can often be monitored or sealed to keep water out. Problems concentrated along an expansion joint, such as failed sealant, lost filler, or movement between panels, mean the joint system itself needs repair. If a crack widens, changes elevation, or repeatedly traps water, have a professional determine whether it indicates subgrade movement or poor joint design, rather than assuming it is just a surface issue.
